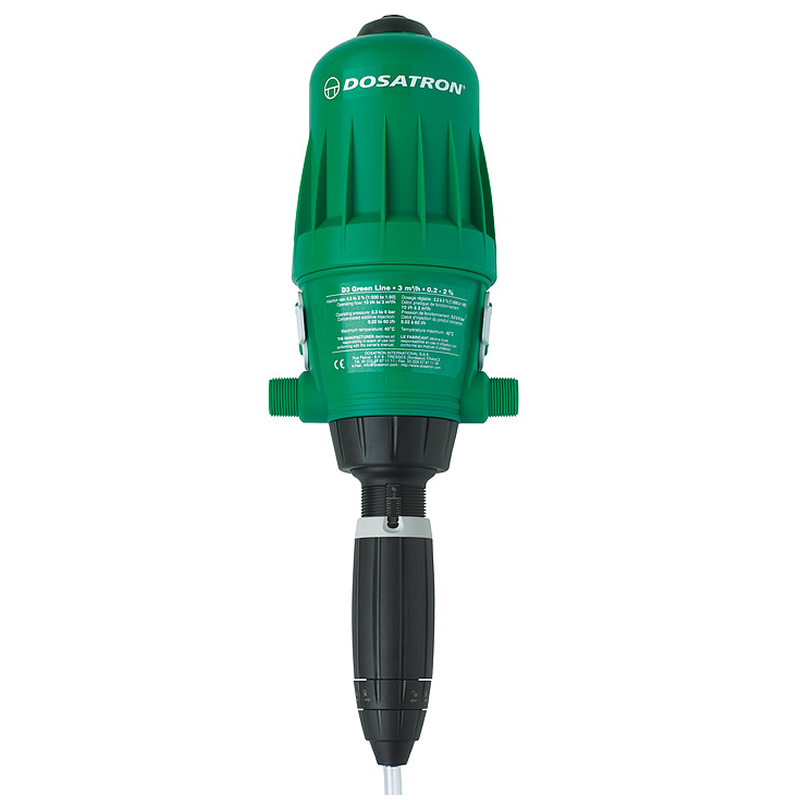

Dosatron Green Line D3GL2 Injector

Stock Code: HINDOS000001

In Stock

The Dosatron D3GL2 injector can be used in many applications in the horticultural and soft fruit growing industries, examples include drip & sprinkler irrigation, misting & fogging, capillary systems, hydroponics, pH correction, soil disinfection, post-harvesting treatments & flower conservation. The Dosatron offers a consistent proportional dose rate and can add flexibility to irrigation & fertigation systems, allowing the producer to easily take action wherever it may be considered to be necessary.

Dosatron's Green Line range is the ideal solution for fertiliser application.

Key Features

Non-electric - The Dosatron operates with water pressure
Accurate dosage, even & continous
Improves yield and limits leaching due to small but frequent additions of nutrients
Suitable for new generations of products: oils, wetting agents etc.
Saves water, product & labour
Option of automated operation
Portable kit

Specifications

Dosage rate: 0.2-2% (Ratio 1:500-1:50)
Operating flow rate: 10-3,000 litres per hour
Operating Pressure: 0.3-6bar/4.3-85psi
Max. Temperature: 40°C
Connexion (NPT/BSP M) Ø 20 x 27mm [¾"]

Spare parts & Serving are available please contact Us for details

Brand	Dosatron
Brand reference	D3GL2
Dosage	0.2-2%
Operation Flow rate	10-3000L/h
Operating Pressure	0.3-6bar/4.3-85psi

There are no downloads for this product.

Descriptions

Dosatron's Green Line range is the ideal solution for fertiliser application.

Key Features

Non-electric - The Dosatron operates with water pressure
Accurate dosage, even & continous
Improves yield and limits leaching due to small but frequent additions of nutrients
Suitable for new generations of products: oils, wetting agents etc.
Saves water, product & labour
Option of automated operation
Portable kit

Specifications

Dosage rate: 0.2-2% (Ratio 1:500-1:50)
Operating flow rate: 10-3,000 litres per hour
Operating Pressure: 0.3-6bar/4.3-85psi
Max. Temperature: 40°C
Connexion (NPT/BSP M) Ø 20 x 27mm [¾"]

Spare parts & Serving are available please contact Us for details
